LED tail light and brake light


Post new topic   Reply to topic    Hacked Gadgets Forum Index -> LED Projects
View previous topic :: View next topic
Author Message
TeckniX
Newbie


Joined: 27 Oct 2010
Posts: 4

PostPosted: Thu Oct 28, 2010 9:51 pm    Post subject: LED tail light and brake light Reply with quote

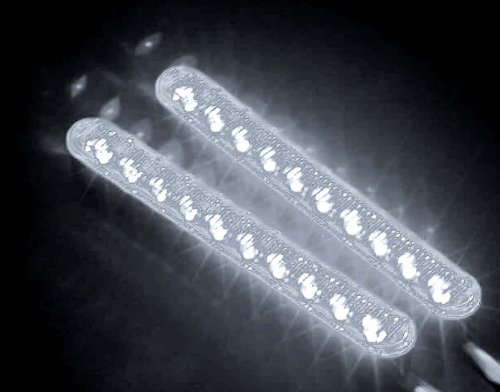

I got one of those red led strip -



What I'm trying to do is from 2 different 12v source have 1 source become a 9v source to create the taillight and the other source be used as the break light.

I've looked up a couple of 12v to 9v converter and I think I can build something, but need a parts list.

I found this little item:
http://www.jab-tech.com/12v-to-9v-Cable-pr-2040.html

Which seems to be exactly what I need to build - Anyone know the parts needed?

Also would like to prevent the 12v current from going into the 9v current - Do I simply need to add a simple diiode at each input ?

I'm guessing there's a small controller somewhere that can take a 12v input and drop it to a 9v, but if a 12v trigger is receive then it outputs 12v?

Any help would be appreciated!
Back to top
View user's profile Send private message

TeckniX
Newbie


Joined: 27 Oct 2010
Posts: 4

PostPosted: Thu Oct 28, 2010 9:58 pm    Post subject: Reply with quote

Somewhat found an answer using a 7809 voltage regulator.

http://www.aaroncake.net/circuits/cdsupply.asp
Is this too out of date?

Now I just need to figure out how I can do a voltage switch based on a trigger.
Back to top
View user's profile Send private message
TeckniX
Newbie


Joined: 27 Oct 2010
Posts: 4

PostPosted: Thu Oct 28, 2010 10:14 pm    Post subject: Reply with quote

Ahh good ol' electornics coming back!

I guess can then use a 5 pin relay - so that I can connect the 12v to the open end so that when 12v is triggered, then 12v goes through, otherwise 9v goes through.

Now I just need someone to confirm all of this Smile

Thanks!
Back to top
View user's profile Send private message
TeckniX
Newbie


Joined: 27 Oct 2010
Posts: 4

PostPosted: Thu Oct 28, 2010 10:31 pm    Post subject: Reply with quote

Quick checklist of parts:

A-5027 Mini Relay SPDT 5 Pins 24VDC 10A 120V Contact
A-4523 1000uF 16V 105C Radial Electrolytic Capacitor 10x16mm
A-4534 10uF 25V 105C Radial Electrolytic Capacitor 5x11mm
A-4507 1uF 100V 85C Radial Electrolytic Capacitor 5x11mm
A-4531 0.1uF 50V 85C Radial Electrolytic Capacitor 5x11mm
A-1597 L7809CV L7809 7809 Voltage Regulator IC 9V 1.5A
A-5031 Small StripBoard 94x53mm (Copper)

This comes out to be about $3 shipped - I'll probably need to find a small box to put everything in.

some of these parts may be over-kill but that's all they had.
Back to top
View user's profile Send private message
Alan
Site Admin


Joined: 29 Jan 2006
Posts: 1399
Location: Winnipeg, MB

PostPosted: Thu Nov 11, 2010 2:23 am    Post subject: Reply with quote

That will work. Some of the caps won't be needed for DC automotive use but won't hurt to use.

Good luck with the build.
Back to top
View user's profile Send private message Send e-mail
hgcomer
Semi Newbie


Joined: 04 Nov 2010
Posts: 7

PostPosted: Thu Nov 11, 2010 6:39 am    Post subject: Reply with quote

I think you got it.
