Super Probe


Post new topic   Reply to topic    Hacked Gadgets Forum Index -> Toy Hacks
View previous topic :: View next topic
Author Message
Project_Nightmare
HG Master


Joined: 12 Oct 2007
Posts: 119
Location: Gig Harbor, WA

PostPosted: Fri Oct 12, 2007 3:25 pm    Post subject: Super Probe Reply with quote

I saw it while running through Makezine's archives. I haven't seen any mention of it elsewhere. It's here: http://mondo-technology.com/super.html

This thing does everthing!!!! Logic Probe, Logic Pulser, Event Counter, Voltmeter, Diode Junction Voltage, Capacitance Meter, Inductance Meter, Square Wave Generator, etc.

Kodos to Luhan Monat - Mesa Arizona

This is something Alan should surely post if he hasn't yet Twisted Evil


Last edited by Project_Nightmare on Sat Jan 19, 2008 3:49 pm; edited 1 time in total
Back to top
View user's profile Send private message Send e-mail

Alan
Site Admin


Joined: 29 Jan 2006
Posts: 1399
Location: Winnipeg, MB

PostPosted: Mon Oct 15, 2007 8:50 pm    Post subject: Reply with quote

Wow that thing is versatile!
Back to top
View user's profile Send private message Send e-mail
Project_Nightmare
HG Master


Joined: 12 Oct 2007
Posts: 119
Location: Gig Harbor, WA

PostPosted: Fri Feb 08, 2008 7:53 pm    Post subject: Reply with quote

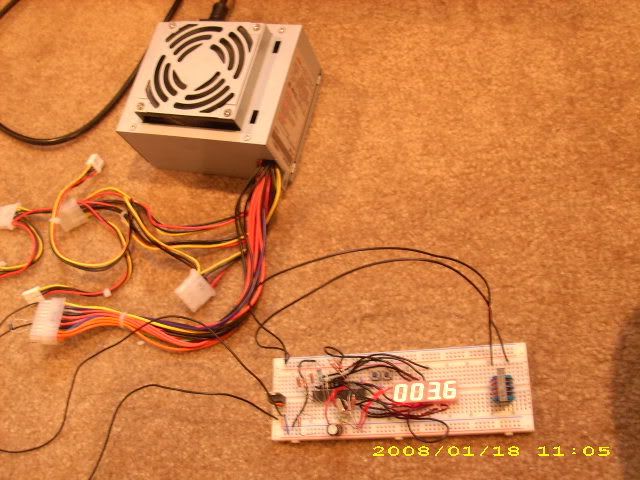

Get a load of my probe Twisted Evil This thing is actually quite accurate, that is an inductor rated at 3.3 mH and as you can see that it is saying that it is 3.6 mH Cool

Back to top
View user's profile Send private message Send e-mail
Turd
HG Ruler


Joined: 18 Aug 2007
Posts: 274
Location: Saskatchewan, Canada

PostPosted: Fri Feb 08, 2008 8:43 pm    Post subject: Reply with quote

Cool! Details please Very Happy

I haven't made an inductance meter yet, I've made a frequency counter before though.


eric
Back to top
View user's profile Send private message Visit poster's website
Alan
Site Admin


Joined: 29 Jan 2006
Posts: 1399
Location: Winnipeg, MB

PostPosted: Fri Feb 08, 2008 10:26 pm    Post subject: Reply with quote

Nice! What was the final cost?
Back to top
View user's profile Send private message Send e-mail
Project_Nightmare
HG Master


Joined: 12 Oct 2007
Posts: 119
Location: Gig Harbor, WA

PostPosted: Fri Feb 08, 2008 11:19 pm    Post subject: Reply with quote

Well, the details are unimportant since all the information needed is given by the site.

All the features work, but I am disappointed that it does not have a resistance meter, the text to read it is hard at first (you start to get use to it), and the LED Display was a pain to wire.

LED display was a problem because there were display pin numbers assigned to pins that didn't exist on the display since the manufacturer removed the unused pins so I had to carefully count the pins and the pins that would have existed if they were there (hence, virtual pins). But, all in all, with a couple of rewirings to the display (my errors not the schematic's), I fixed the mistakes I made in the process.

The total cost however was around $10 without shipping and handling fees from digi-key.com Twisted Evil

And yes, my name Zach Rolling Eyes And I do not mostly use it for the inductance features!!! That is still too early to deturmine Evil or Very Mad
Back to top
